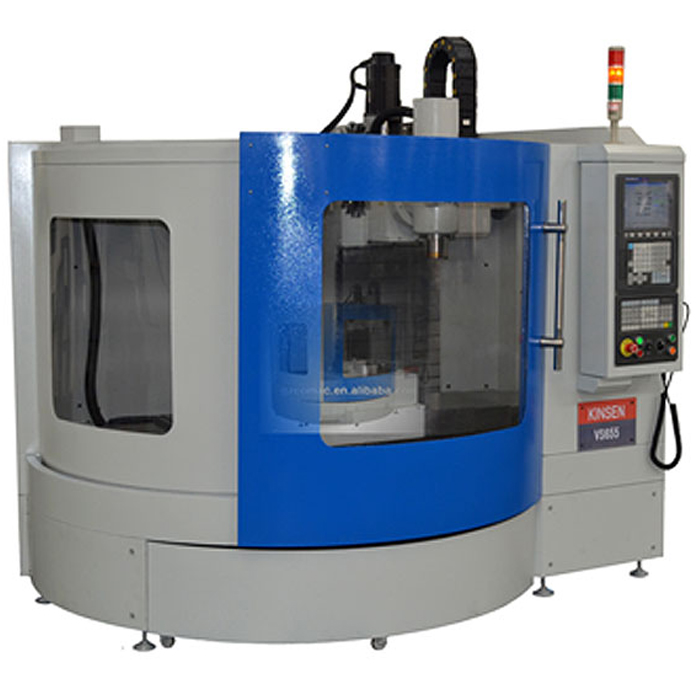

VS655 is a complex 5 axis CNC machine designed for education proposal， and also one of the best choice for the cutting of Complicated Aluminum alloy, copper， nonferrous metals workpice, such as the tin status, electrical poles for EDM machine, architectures mold, new production rapid proto typing. Program can be design with CAD and CAM, such as Mastercam, UG, and Pro E.

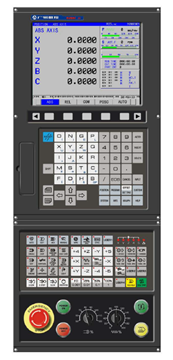

 | The 5 axis CNC system GSK25i, which is a CNC system from the top CNC manufacturer in China, design with all ISO standard CNC features like the top level CNC system. GSK 25i Milling Machining CNC system , a new generation of CNC device, developing by GSK with full heart. It is featured by high precision, great performance, 5 axes simultaneous control and closed-loop control (half closed-loop control and full closed-loop control) and can be widely applied in CNC milling machine and machining center. |
| Optional CNC system such as Siemens 840D, Heidenhain， Fagor is available for different kind of applications. | |
|
| |
| ISO G Code Network communiction function | |
| COMMERICAL 5 AXIS MACHINING FOR EDUCATION AND INDUSTRIAL PROPOSAL | ||

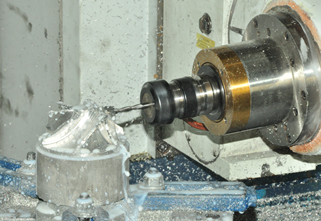

| Machining of Turbines and Turbine blades, B axis with a swivel angle up to -110 degree. Motorized spindle with BT30 spindle nose. Standard spindle speed 18000rpm, and 24000rpm is optional. |  | |

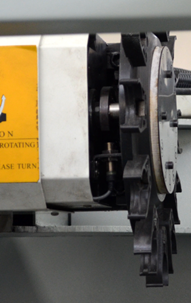

 | 12 position ATC can meet the tool requirement for most of complicated machining. Horizontal ATC design make the tool changing easy and no interference. | |
| Rotary table | Big Operation space ,suitable for teaching show | |
 |  | |
Worktable | Table size | 400×800 | mm |
Table loading | 250 | kg | |
Machining range | X travel | 7500 | mm |
Y travel | 390 | mm | |
Z travel | 540 | mm | |
B axis | +30°~-110° | degree | |
C axis | 0°~-360° | degree | |
spindle nose to table surface | 100-640 | mm | |
Spindle | Spindle taper | BT30 | |
Max. speed | 12000/18000/24000 | rpm | |
Spindle motor | 5.5 | kW | |
Rotary table | Rotary table type | CNC300 | |
Disk diameter | 250 | mm | |
Rotation angle | 360° | ||
Feed rate | Cutting feed rate | 100-3000 | mm/min |
Max. rapid traverse speed | ≥20000 | mm/min | |
Accuracy | positioning accuracy | ± 0.01 | mm |
repeatability | ± 0.005 | mm | |
B/C axis positioning accuracy | 0.002 | Deg. | |
B/C axis positioning accuracy | 0.0015 | Deg. | |
ATC Horizontal without Manipulator | Tools number | 12+1 | |
Taper | BT30 | ||
Max tool diameter | 80 | mm | |
Max tool weight | 8 | kg | |
coolant system | Min. Nozzle quantity | 3 | |
Min pressure | 1 | bar | |
Controller | Type | Sinumerik 840D or equivalent (Forgo8055M、Gsk25i、Dasen-18i or Mitsubishi 70) | |
Memory | min. 1/2 | MB | |
Simulation | 3D | ||
Language | English、Chinese | ||
Monitor | min. 11'' TFT | ||
Lubrication system | automatic | ||
Machine size | 2200 1500 2300 | mm | |
Cover form | full-closed | ||
